Graphite electrode HP 350MM*1800MM With Nipple 3TPI Low electric Resistance
Export to Vietnam , Uzbekistan ,Turkey ...etc.... Steel , Ferroalloys , Silicon Metal ,Yellow Phosphorus ....

Our factory provides graphite electrodes of different specifications with diameters from 50-900mm (2 '- 36'), including Regular power graphite electrode (RP), impregnated graphite electrode, high power graphite electrode (HP) and ultra-high power graphite electrode (UHP).

We have a complete set of graphite electrode production line. The graphite electrode of our products has the advantages of compact structure, good electrical and thermal conductivity, strong oxidation resistance and corrosion resistance, low resistivity and large current load resistance. It is widely used in heavy industrial electric arc furnace, steel plant, foundry and other related industries.

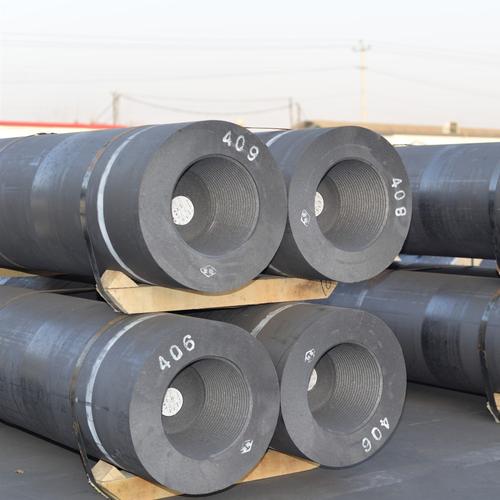

Products Show :

HP Graphite Electrodes Diameters Range From 200 mm to 600 mm

Product Paramenters

UHP Graphite Electrode

Items		Specific Electric Resistance <= μΩ·m	Flexural Strength >=MPa	MOE<= GPa	CTE( 100-600oC) <= 10-6/oC	ASH<=	DIAMETER AND LENGTH	Bulk density >=g/cm3	Needle Coke Content %
Standard ( YB/T 4089-2015 )	E	4.5-6.2	10-16	10-14	1.1-1.5	0.2	250mm-700mm 1800mm-2700mm	1.66-1.72	45-90%
Standard ( YB/T 4089-2015 )	N	3.0-4.2	21-30	15-20	0.9-1.2	0.2		1.75-1.82	45-90%
Factory Supply	E	<=6.0	10-16	10-16	1.5	0.2		>=1.67	50%-100%
Factory Supply	N	<=4.0	21-30	14-18	1.2	0.2		>=1.78	50%-100%

HP Graphite Electrode

Items		Specific Electric Resistance <= μΩ·m	Flexural Strength >=MPa	MOE<= GPa	CTE( 100-600oC) <= 10-6/oC	ASH<=	DIAMETER AND LENGTH	Bulk density >=g/cm3	Needle Coke Content %
Standard ( YB/T 4089-2015 )	E	5.2-6.5	10.5-15	9-12	1.5-2.2	0.2	200mm-700mm 1800mm-2700mm	1.66-1.72	20-35%
Standard ( YB/T 4089-2015 )	N	4.0-4.5	20-26	14-18	1.2-1.5	0.2		1.75-1.82	20-35%
Factory Supply	E	<=6.5	10.5-15	9-12	1.5	0.2		>=1.66	25%-40%
Factory Supply	N	<=4.0	20-26	14-20	1.2	0.2		>=1.78	25%-40%

RP Graphite Electrode

Items		Specific Electric Resistance <= μΩ·m	Flexural Strength >=MPa	MOE<= GPa	CTE( 100-600oC) <= 10-6/oC	ASH<=	DIAMETER AND LENGTH	Bulk density >=g/cm3
Standard ( YB/T 4089-2015 )	E	7.0-8.5	7.0-9.5	6.0-9.0	2.2-2.5	0.5	100-960mm 1600mm-2700mm	1.60-1.65
Standard ( YB/T 4089-2015 )	N	4.0-4.5	17-22	12-16	1.5-2.0	0.5		1.75-1.82
Factory Supply	E	8	7.5-9.5	6.0-10	2.5	0.5		1.6
Factory Supply	N	4.0	17-22	12-16	2.0	0.5		1.80

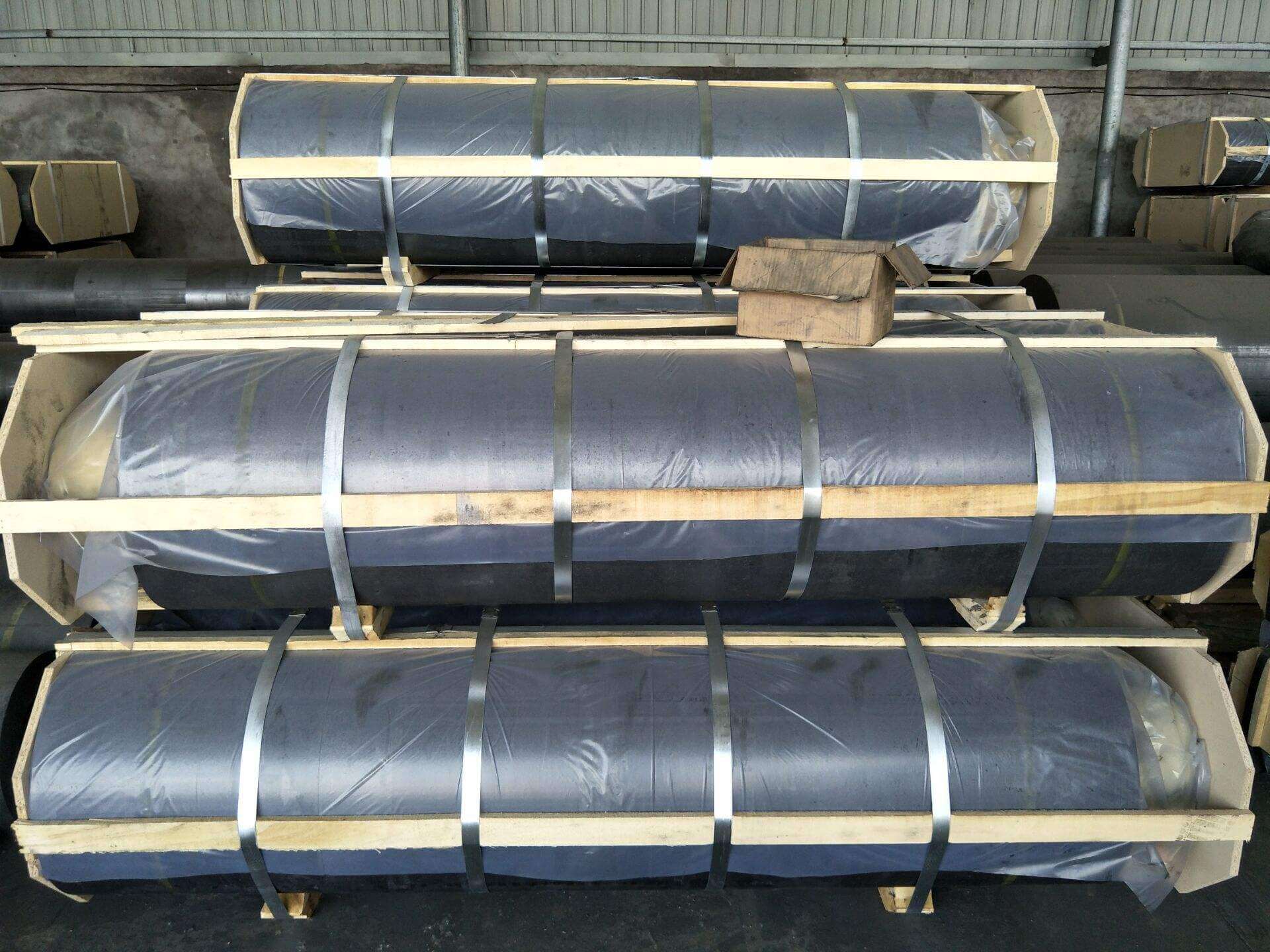

Packaging Details :in wooden case or package as customer's order
Usage: An increasing proportion of global steel is made using electric arc furnaces, and the electric arc furnace itself is getting more efficient and making more steel per tonne of electrode

WE have a large customers from international market .

Best Price !!
