Product name : High Density High Carbon Low Resistancegraphite El

Category : HP_Graphite_electrode

Description:

Product Description High Density High Carbon Low Resistancegraphite Electrode with Nipple for Eaf

High Density High Carbon Low Resistance RP HP UHP Graphite Electrode with Nipple For Eaf

Product Description:

Product Overview

Product name: Graphite Electrode

Other Name: Carbon Electrode /UHP Graphite Electrode /Graphite Electrodes

Size: Customized

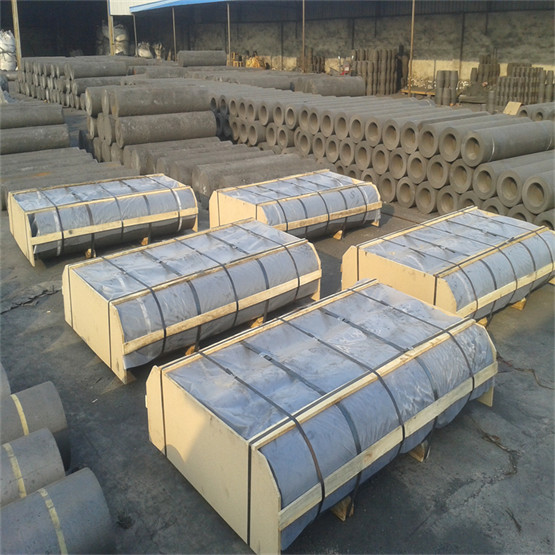

Regular Package: wooden case

Origin: China

Appearance: Black solid

Brief Introduction :

There are different grades specified within both electrode types, such as:

· HP - High Power

· HD - High Density

· UHP - Ultra High Power

· SHP - Super High Power

Graphite electrodes are mainly used in electric arc furnace. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in EAF. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes. Graphite electrodes are divided into 4 Types: RP Graphite electrodes, HP Graphite electrodes, SHP Graphite electrodes, UHP Graphite electrodes.

Features of Graphite Electrode:

1.High physical volume density

2.Super anti-press power

3. Low rate of electric resistance

4.Strong anti-oxidizes

Product Specifications Of RP HP UHP Graphite Electrode

Items		Regular power(RP)			High power(HP)			Ultrahigh power(UHP)
		⌽200-300	⌽350-600	⌽700	⌽200-400	⌽450-600	⌽700	⌽250-400	⌽450-600	⌽700
ResistanceμΩm(Max)	Electrode	7.5		8.0	6.5		7.0	5.5		5.5
	Nipple	6.0		6.5	5.0		5.5	3.8		3.6
BulkDensityg/cm3(Min)	Electrode	1.53	1.52	1.53	1.62	1.60	1.62	1.67	1.66	1.66
	Nipple	1.69		1.68	1.73		1.72	1.75		1.78
BendingStrengthMpa(Min)	Electrode	8.5	7.0	6.5	10.5	9.8	10.0	11.0		11.0
	Nipple	15.0		15.0	16.0		16.0	20.0		20.0
Young'smodulusGpa(Max)	Electrode	9.3		9.0	12.0		12.0	14.0		14.0
	Nipple	14		14.0	16.0		16.0	18.0		22.0
Ash%(Max)	Electrode	0.5		0.5	0.3		0.3	0.3		0.3
	Nipple	0.5		0.5	0.3		0.3	0.3		0.3
CTE(100-600oC)×10-6/oC	Electrode	2.9		2.9	2.4		2.4	1.5		1.4
	Nipple	2.8		2.8	2.2		2.2	1.4		1.2
